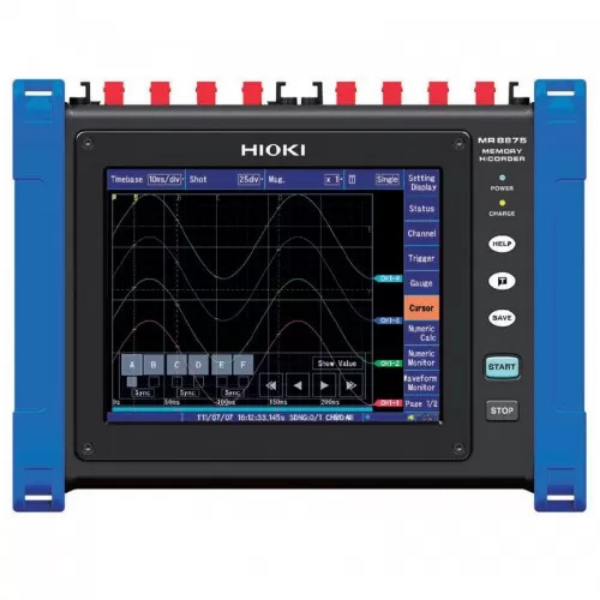

HIOKI MR8875 Memory Hicorder
Jual HIOKI MR8875 Memory Hicorder di Indonesia, untuk permintaan presentasi dan penjelasan lebih lanjut mengenai produk tersebut hubungi EMS Technology
HIOKI MR8875 Memory Hicorder
Deskripsi Teknis Tentang Produk Hioki MR8875 Memory Hicorder
Hioki Memory HiCorders are high-speed waveform monitoring and recording devices that can simultaneously measure multiple physical phenomena such as voltage, current, temperature, vibration, weight, acceleration and rotation due to complete isolation between channels and from each channel to the ground. The MR8875 data acquisition (DAQ) recorder accommodates plug-and-play input modules to meet applications such as onboard vehicle analysis, current consumption testing of portable devices, and measuring the voltage waveforms of superconducting materials and contacts.
Key Features
• 1000V input and instantaneous DC or RMS waveform measurement with new Analog Unit MR8905
• Multi-channel logger capable of thermocouple temperature measurement up to 60 ch at 10 msec intervals
• Measure multiple channels simultaneously despite handheld portable design
• Max. 2 μsec high-speed simultaneous logging for all input channels
• Save directly to the SD Card in real time for uninterrupted long-term logging
• 16-bit high-resolution measurement of voltage, temperature, distortion and CAN signals
• FFT calculation, waveform calculation functions for advanced analysis
• Intuitive touch screen for optimal operability
• Tough against vibrations and extreme temperatures, with strengthened body ideal for in-vehicle testing and road tests
• 3 different power supplies
Spesifikasi Lengkap Tentang Produk Hioki MR8875 Memory Hicorder
| Parameter | Spesifikasi |
|---|---|
| Number of Input Units | Up to 4 slots |
| Number of Channels | Max. 16 analog channels (Max. 60 channels when using the MR8902) + standard 8 logic channels + 2 pulse channels Note: For analog units, channels are isolated from each other |
| Measurement Ranges (20 div full scale) | 5 mV to 10 V/div, 11 ranges (when using the MR8901) 500 mV to 50 V/div, 7 ranges (when using the MR8905) Resolution: 1/1250 of range |
| Max. Rated Voltage | Between terminals: 150 V DC Between terminal to earth: 100 V AC/DC (when using the MR8901) |
| Frequency Characteristics | DC to 100 kHz (-3 dB, when using the MR8901) |
| Time Axis | 200 μs to 5 min/div, 21 ranges Sampling period: 1/100 of range External sampling possible |
| Max. Sampling Rate | [Using MR8901] 500 kS/s (2 μs period, all channels simultaneously) [Using MR8902] 10 ms (all input channels scanned at high speed during every recording interval) [Using MR8903] 200 kS/s (5 μs period, all channels simultaneously) External sampling: 200 kS/s (5 μs period) |
| Measurement Functions | High-speed function (high-speed recording), Real-time calculation between channels, FFT calculation, and other functions |
| Storage Memory Capacity | Total 32 M-words (memory expansion: N/A, 8 MW per input unit) Note: 1 word = 2 bytes, therefore 32 Mega-words = 64 Mega-bytes Storage memory can be allocated depending on the number of channels used at each input unit |
| Removable Storage | SD card slot ×1, USB 2.0 memory |
| Display | Touch-panel operation, 8.4-inch SVGA TFT color LCD (800 × 600 dots) |
| Communication Interfaces | LAN: 100BASE-TX (DHCP, DNS supported, FTP server/client, WEB server, send E-mail, command control) USB: USB 2.0 compliant, mini-B ×1 (setting/measure via communication command, or file transfer SD card to PC), Series A ×2 (USB memory, USB mouse/keyboard) |
| Power Supply | 1) AC adapter Z1002: 100 to 240 V AC (50/60 Hz), 56 VA 2) Battery pack Z1003: 7.2 V DC, 36 VA, continuous operation time: approx. 1 hour with backlight ON (AC adapter has priority when used together), charging time: approx. 3 hours 3) External DC power: 10 to 28 V DC, 56 VA |
| Dimensions and Mass | 298 mm (W) × 224 mm (H) × 84 mm (D), 2.4 kg (excluding input units and battery pack Z1003) Reference: 3.47 kg (including MR8901 ×4 units and battery pack Z1003) |
| Accessories | Instruction manual ×1, Measurement guide ×1, AC adapter Z1002 ×1, Protection sheet ×1, USB cable ×1, Shoulder strap ×1, Application disk (Wave Viewer Wv, Communication commands table, CAN Editor) ×1 |
Hioki MR8875 Memory HiCorder merupakan high-speed waveform recorder yang dirancang untuk menangkap dan menganalisis fenomena listrik secara detail, terutama pada kejadian transient, surge, dan switching event yang sulit ditangkap oleh data logger biasa. Dengan kemampuan sampling hingga 20 MS/s (mega samples per second), alat ini mampu merekam perubahan sinyal yang sangat cepat dengan tingkat akurasi tinggi.
Keunggulan utama dari perangkat ini adalah kombinasi antara kecepatan tinggi dan isolasi antar channel, sehingga memungkinkan pengukuran sinyal listrik secara aman tanpa risiko interferensi atau ground loop—sangat penting untuk aplikasi seperti inverter, motor drive, hingga power electronics testing.
Hioki MR8875 mendukung berbagai jenis input seperti tegangan tinggi (direct), arus (melalui sensor), hingga sinyal logika, menjadikannya fleksibel untuk berbagai kebutuhan pengujian—baik di laboratorium maupun di lapangan. Selain itu, alat ini juga dilengkapi dengan trigger function yang canggih, sehingga mampu menangkap event spesifik seperti spike atau drop tegangan secara otomatis.
Fitur lain yang mendukung analisis adalah real-time waveform display, fungsi kalkulasi (FFT, RMS, peak analysis), serta kemampuan penyimpanan data ke berbagai media seperti SD card atau USB. Hal ini memudahkan proses evaluasi performa sistem serta dokumentasi hasil pengukuran. Dengan kombinasi high-speed acquisition, fleksibilitas input, dan kemampuan analisis waveform, Hioki MR8875 menjadi solusi ideal untuk:
- Analisis transient pada sistem listrik
- Evaluasi performa inverter & power electronics
- Troubleshooting gangguan listrik yang kompleks
- Pengujian motor & switching device
Informasi Penjualan Produk HIOKI MR8875 Memory Hicorder
Bagi Anda yang sedang mencari informasi terkait jual HIOKI MR8875 Memory HiCorder maupun referensi harga HIOKI MR8875 Memory HiCorder, memahami kemampuan alat ini sangat penting untuk memastikan kesesuaian dengan kebutuhan analisis sinyal listrik berkecepatan tinggi. Sebagai distributor resmi HIOKI di Indonesia, EMS Technology menyediakan HIOKI MR8875 Memory HiCorder lengkap dengan dukungan teknis profesional dan layanan purna jual terpercaya.
Kami siap membantu Anda dalam:
- Konsultasi kebutuhan waveform recording & transient analysis
- Rekomendasi sensor & konfigurasi channel
- Demo produk & pembuktian performa langsung
- Integrasi ke sistem R&D maupun industrial testing
