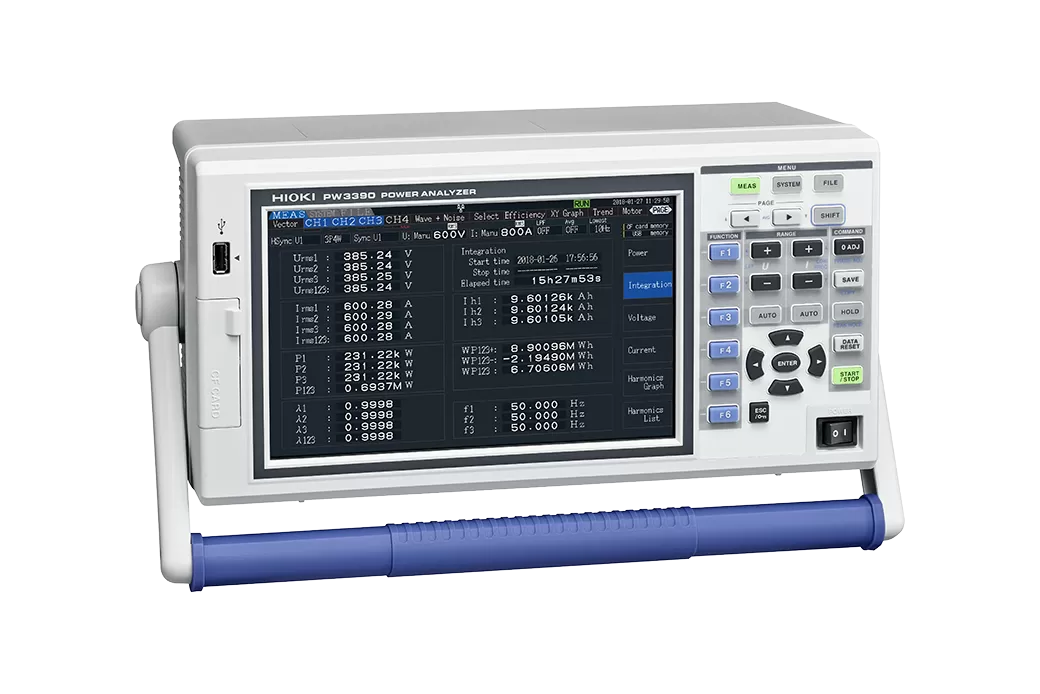

HIOKI PW3390 Power Analyzer
Jual HIOKI PW3390 Power Analyzer di Indonesia, untuk permintaan presentasi dan penjelasan lebih lanjut mengenai produk tersebut hubungi EMS Technology
HIOKI PW3390 Power Analyzer
Deskripsi Teknis Tentang Produk Hioki PW3390 Power Analyzer
DC, 0.5 Hz to 200 kHz, 3-phase 4-wire, High Precision Power Analyzer for Motor and Inverter Efficiency Analysis.
Hioki benchtop power meters and power analyzers are best in class power measuring instruments for measuring single to three-phase lines with a high degree of precision and accuracy. The PW3390 is a high-precision, broad-range power analyzer for measuring electrical power from DC to inverter frequencies, providing four input channels to support single- and three-phase inverter motor systems up to 4000 A AC/DC with superior accuracy.
High-accuracy, high-speed calculation of transient-state power in 50 ms; harmonic analysis; display of instantaneous waveforms; noise analysis; and simultaneous parallel calculation of all parameters, including efficiency loss
The Hioki PW3390 Power Analyzer offers ±0.04％ ±0.05％ f.s. power accuracy, the top of its class. With a 200kHz measurement bandwidth and flat amplitude and phase characteristics up to high frequencies, as well as a powerful phase shift correction function that maximizes the power of its original current sensors, the PW3390 can now be utilized by researchers and developers to high frequency, low power factor power with absolutely accuracy. Apply the PW3390 and Hioki current sensors to power conversion efficiency evaluations and the analysis and harmonic studies of EV and HEV inverter motors.
- ±0.04% basic power accuracy, among the best in its class
- 200 kHz measurement band with flat amplitude and phase accuracy that extend to high frequencies
- Remarkably small and light footprint, enabling high-accuracy measurement to be easily carried out even in the field
- Send measured values to Hioki data loggers using a Bluetooth® wireless technology compatible adapter (LR8410 Link-compatible products)
- Simultaneous measurement of multiple circuits and ability to acquire synchronized data using up to 8 devices (for 32 channels)
- Simple power measurement using clamp-on current sensors
- Measurement of current and power inputs and outputs as part of the new WLTP fuel efficiency international standardSpesifikasi Produk HIOKI PW3390 Power Analyzer
| Measurement Line Type | Single-phase 2-wire, single-phase 3-wire, three-phase 3-wire, three-phase 4-wire, Voltage 4 channels, Current 4 channels, Isolated between each channel |
|---|---|
| Measurement Items | Frequency, RMS voltage, voltage mean value rectification RMS equivalent, voltage AC component, voltage simple average, voltage fundamental wave component, voltage waveform peak +, voltage waveform peak -, voltage total harmonic distortion, voltage ripple factor, voltage unbalance factor, RMS current, current mean value rectification RMS equivalent, current AC component, current simple average, current fundamental wave component, current waveform peak +, current waveform peak -, current total harmonic distortion, current ripple factor, current unbalance factor, active power, apparent power, reactive power, power factor, voltage phase angle, current phase angle, power phase angle, positive-direction current magnitude, negative-direction current magnitude, sum of positive- and negative-direction current magnitude, positive-direction power magnitude, negative-direction power magnitude, sum of positive- and negative-direction power magnitude, efficiency, loss, current integration, active power integrationPW3390-03 only: Torque, Rotation, Frequency, Slip, or Motor power |
| Harmonic Measurement | Input: 4 ch Synchronization frequency range: 0.5 Hz to 5 kHz Number of harmonic orders: Max. 100th order |
| Noise Measurement | Number of channels: 1 ch (select one channel from CH1 to CH4) Maximum analysis frequency: 200 k / 50 k / 20 k / 10 k / 5 k / 2 kHz |
| Motor Analysis (PW3390-03 Only) | Input: 3 ch (CH A, CH B, CH Z) Measurement parameters: Voltage, torque, rotation rate, frequency, slip, and motor power |
| Measurement Range | Voltage range: 15 to 1500 V, 7 ranges Current range: 0.1 A to 20 kA (depends on current sensor) |
| Effective Measuring Power Range | 0.0150 W to 39.600 MW (determined automatically by the combination of voltage range, current range, and measurement line) |
| Basic Accuracy (45 to 66 Hz) | Voltage: ±0.04 % rdg. ±0.05 % f.s. Current: ±0.04 % rdg. ±0.05 % f.s. + current sensor accuracy Active power: ±0.04 % rdg. ±0.05 % f.s. + current sensor accuracy |
| Power Supply | 100 to 240 V AC, 50/60 Hz, 140 VA max. |
| Dimensions and Mass | 340 mm (13.39 in) W × 170 mm (6.69 in) H × 156 mm (6.14 in) D, 4.6 kg |
| Accessories | Instruction Manual ×1, Power cord ×1, Measurement Guide ×1, USB cable ×1, Input cord label ×2, D-sub connector ×1 (PW3390-02, PW3390-03) |
Hioki PW3390 Power Analyzer merupakan solusi pengukuran daya yang dirancang untuk analisis efisiensi sistem listrik secara presisi tinggi, khususnya pada aplikasi seperti motor, inverter, dan power electronics. Dengan akurasi hingga ±0.04%, alat ini mampu memberikan hasil pengukuran yang sangat akurat, bahkan pada kondisi pengujian dengan low power factor atau sinyal yang kompleks.
Keunggulan utama dari perangkat ini adalah kemampuannya melakukan pengukuran multi-channel (hingga 4 power channel) secara simultan, sehingga sangat ideal untuk analisis input-output power dalam satu sistem. Hal ini memungkinkan engineer menghitung efisiensi dengan lebih akurat dalam satu kali pengukuran.
Hioki PW3390 juga memiliki bandwidth pengukuran yang luas dari DC hingga 200 kHz, sehingga mampu menangani sinyal dari sistem modern seperti inverter berbasis switching frekuensi tinggi. Ditambah dengan high noise immunity, hasil pengukuran tetap stabil meskipun digunakan di lingkungan industri dengan gangguan elektromagnetik tinggi.
Fitur analisis lanjutan seperti harmonic analysis, FFT, serta motor analysis (torque & speed integration) memberikan insight mendalam terhadap performa sistem, termasuk identifikasi losses dan optimasi efisiensi. Selain itu, alat ini juga mendukung berbagai jenis sensor arus (clamp & direct), sehingga fleksibel untuk berbagai aplikasi pengujian.
Dari sisi usability, Hioki PW3390 dilengkapi dengan data logging, interface komunikasi (USB, LAN, GP-IB), serta software analisis yang memudahkan proses dokumentasi dan pembuatan report profesional. Hal ini menjadikannya sangat cocok untuk kebutuhan R&D, validation test, hingga quality assurance di industri. Dengan kombinasi akurasi tinggi, fleksibilitas, dan fitur analisis lengkap, Hioki PW3390 menjadi pilihan ideal bagi engineer yang membutuhkan pengukuran daya dengan standar profesional.
Informasi Penjualan Produk Hioki PW3390 Power Analyzer
Bagi Anda yang sedang mencari informasi terkait jual HIOKI PW3390 Power Analyzer maupun referensi harga HIOKI PW3390 Power Analyzer, memahami kapabilitas alat ini sangat penting untuk memastikan kesesuaian dengan kebutuhan pengukuran daya dan efisiensi sistem Anda. Sebagai distributor resmi HIOKI di Indonesia, EMS Technology menyediakan HIOKI PW3390 Power Analyzer lengkap dengan dukungan teknis profesional dan layanan purna jual terpercaya.
Kami siap membantu Anda dalam:
- Konsultasi kebutuhan power measurement & efficiency analysis
- Rekomendasi konfigurasi channel & sensor sesuai aplikasi
- Demo produk & pembuktian performa langsung
- Integrasi ke sistem R&D maupun automated test system
📧 sales@emstechnology-indonesia.com
📞 (021) 27848680 | +62 812-1257-3546
🔗 Hubungi EMS Technology untuk mendapatkan informasi lengkap mengenai spesifikasi, ketersediaan, serta penawaran terbaik sesuai kebutuhan Anda.
